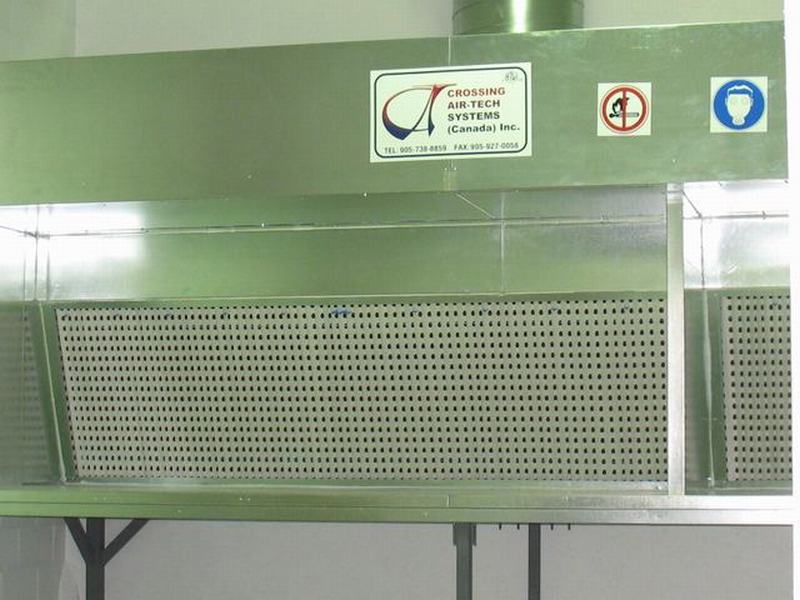

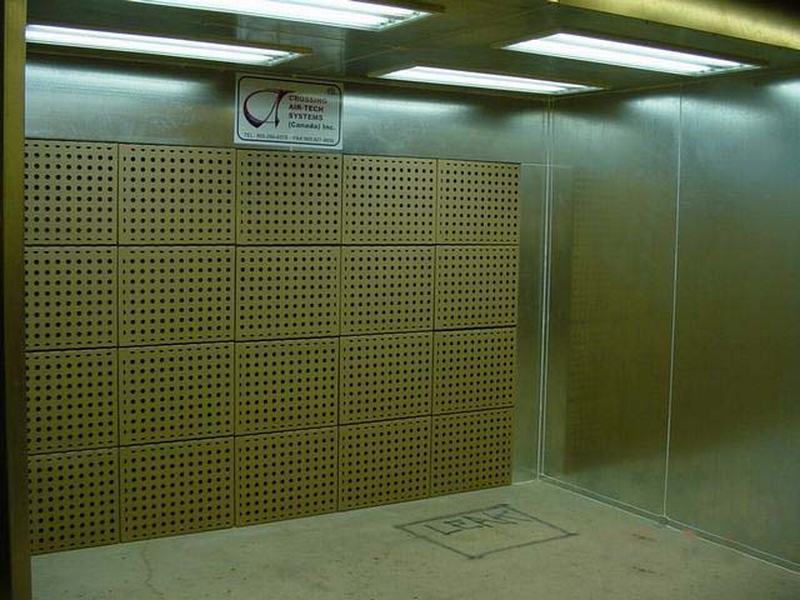

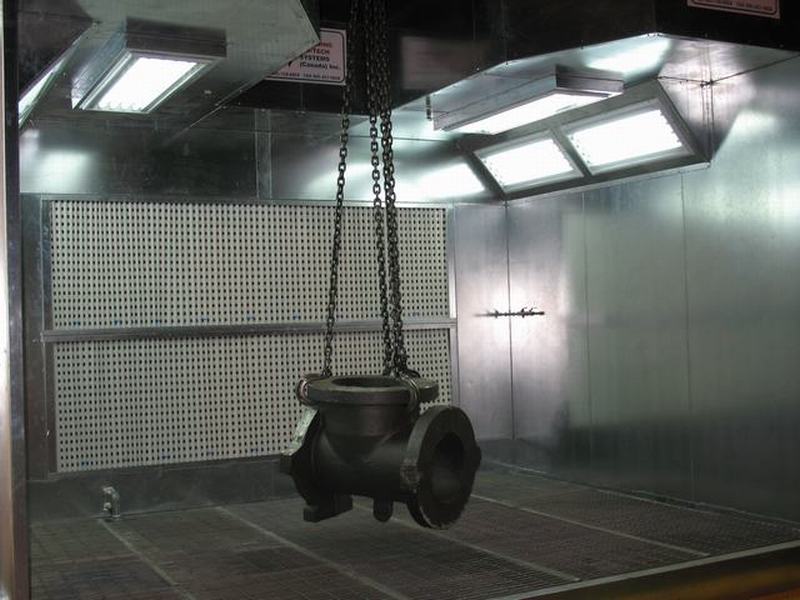

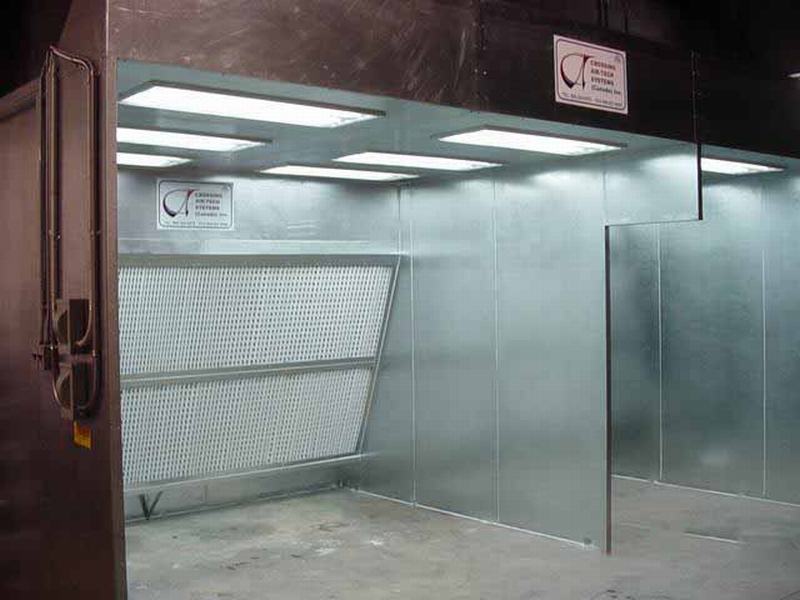

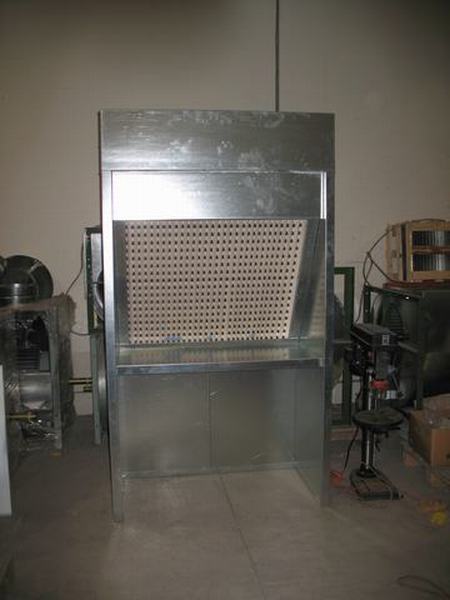

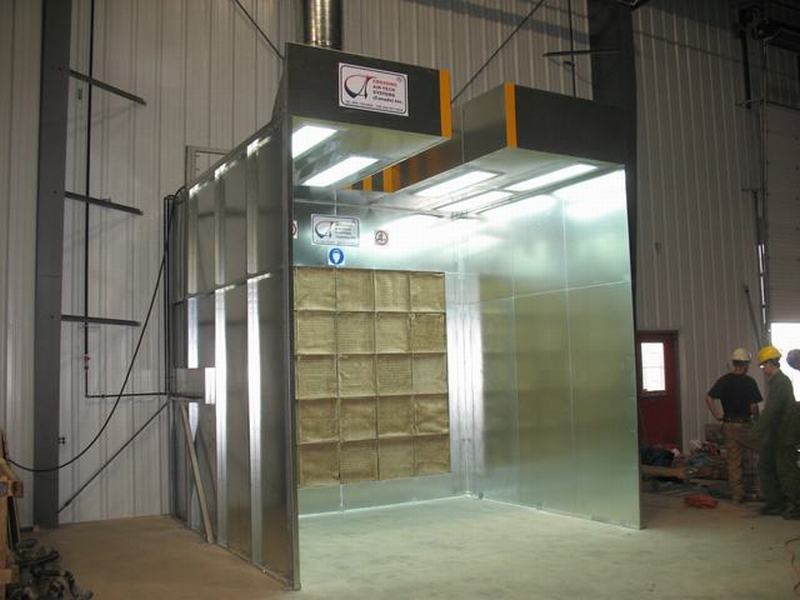

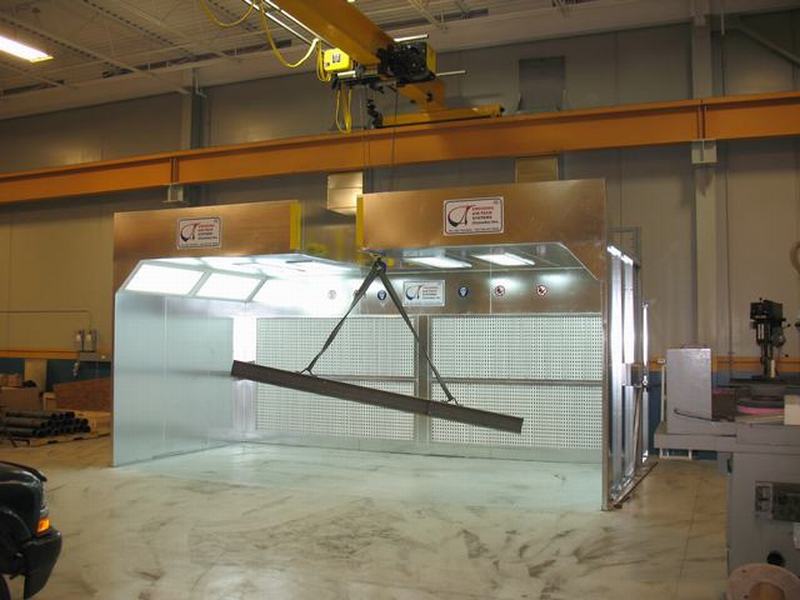

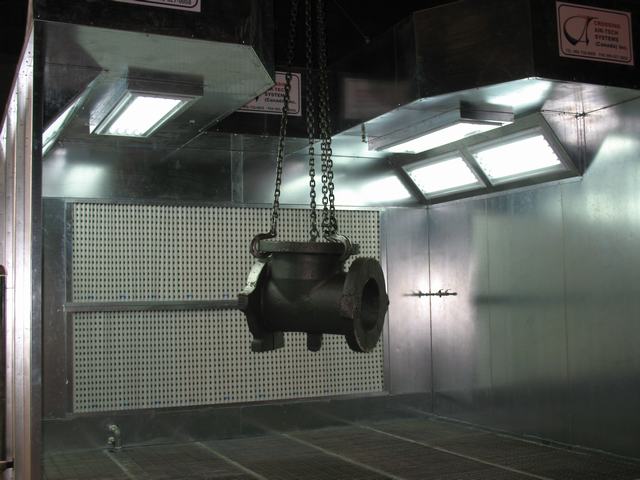

Open Face is designed and manufactured to provide a cleaner, safer and more productivity working condition for you to have superior quality finishes.

The air enters the working chamber unfiltered through an open face. The particulate is captured by filter bank and 100% exhausted through exhaust duct and stack into the atmosphere. It is economical solution to remove over spray.

Flexible Modular Design:

• Tough 18 gauge galvanized steel or satin coat for construction
• Standard Size (to unlimited)
7’W x 7’H x 7D
7’W x 7’H x 5’D
10’W x 8’H x 6’D
12’W x 8’H x 6’D
20’W x 8’H x 6’D

• Top and rear panels are interchangeable for top or rear exhaust
• Overhead fluorescent light fixture
• Complete set of filter media

Meet: OBC, OFC, OML, OME, UL, OSHA, NFPA, BOCA Codes

Exhaust System:

• Exhaust two banks Andrea Filters
• 2 x 10 pieces 20" x 20" ssp. intake filters (two sides)
• 24" diameter exhaust fan, the rate is at 9,000 CFM (free air)
• 20' long stack kit, including roof flashing
• 1 24"weather damper
• 2HP, 3ph 575V motor included and other types motor available on request. (Special voltage)
